Woodfuel workshop at Bentley Woodfair

Last Friday I went to a Forestry Commission workshop called "Woodfuel: Fuel for the future?". It was held at the Bentley Woodfair (also know as the Weald Woodfair), which meant there was a lot of interesting stuff going on. I'll come on to to what the workshop speakers said shortly, but first let's have a look at some pictures and videos of the practical demonstrations that were included.

The first stop on the tour of demonstrations was a tractor fitted with what's know as a "harvesting head", which is able to grab hold of a tree, cut through it near the base, remove the branches and cut the tree to a set length. It even has computerised sensors to automatically measure the volume of wood produced! Here's the harvesting head on the ground:
and stowed for driving on the road:
It extends from the back of the tractor on a hydraulically powered crane:
Here's a short video of it in action, although sadly the operator couldn't fell a tree while we were there due to safety restrictions

One of the handy things about it is that while processing the tree it causes a lot of damage to the bark, which then helps the log dry out quickly - ideal for producing woodfuel!
The point of seeing it was that harvesting heads such as this are normally fitted to very large vehicles, more than twice the size of this tractor. By fitting it to a tractor (which required some special fixings to be produced) a much more manoeuvrable system is produced, allowing it to work efficiently on woods where thinning is being carried out, as the trees being left must not be damaged. There was plenty of opportunity for us to ask the vehicle owner questions about how the system works and what it's pros and cons are:
Personally, I'd prefer to see this kind of work done in what's known as "motor manual" style, which is basically people on the ground with chainsaws, and a small tractor for extracting the logs, but I can see that this doesn't work for everyone, so if this system means that woodfuel can be produced from woodland that would otherwise be left unmanaged, then that's good.

After the harvesting tractor, the next stop was machinery for processing the wood into logs for use in woodburners. There were various large hydraulic splitters that could run from the PTO (Power Take-Off) on a tractor:
The split logs can then be cross-cut by a PTO-driven circular saw:
Alternatively, it is possible to use a single machine which cross-cuts a log and automatically triggers a hydraulic ram to split the section that's been cut off:
The split pieces of wood are then carried up a conveyer belt to be dropped into a waiting truck:
Of course, lighting a woodburner doesn't just need logs, you need kindling too, and we saw a machine for making that as well. Kindling is a higher-value product for a woodland owner to produce - converting logs into kindling can add up to 50% to their value.
Finally, we went to see a large and a small machine producing woodchip, which can be used in automated boilers.
Here's a video of the larger chipper in action:

Anyway, that was the afternoon, but in the morning I went to a series of short lectures. Here's the details:

Sally Marsh, Director of the High Weald AONB, opened the session by explaining that the region has 30% woodland cover, and could sustainably meet 15% of local heating needs. She also mentioned the woodland archaeology and biodiversity, which must always be considered in any woodland management plan.

Tom Vosper, of Creative Environmental Networks, explained the different regulations that affect the use of wood-fuel.

• "Dark smoke" is prohibited by the Clear Air Act, and specific smoke control areas where measures are in place can be looked up at www.uksmokecontrolareas.co.uk

• Wood is not a smokeless fuel, but it can be burned if an exempt appliance is used - a list of these is available
• Any installation which uses more than 45.4kg/hr of fuel (about 130kW output) will need "chimney height approval" from the local authority
• In most cases planning permission is not required for use of biomass heating; exceptions may include unusually tall flues, new buildings and work in a listed building or conservation area
• A further piece of legislation to be aware of is Air Quality Management areas, which can be checked at www.airquality.co.uk
• Other useful websites include HETAS and Microgeneration Certification.

James Noble, of Esus Forestry and Woodlands, spoke to us about bringing neglected woodland back into sustainable management. A management plan must always start with clear goals, which could include sustainability, biomass fuel production, conservation and safety. Two key factors dictate the management options: what is possible with the woodland, and what is possible with the owner! Lack of management will gradually reduce the options available over time. The challenges facing owners wanting to manage woodland sustainably are:

• Shortage of good contractors, and the increasing average age of contractors - the work is hard and not well-paid, so it is difficult to attract new people into the profession.
• As a result, there has been a trend towards using large machinery (as it requires fewer staff), but the woodland conditions are not always suitable for this, and woodland soils can be damaged by heavy vehicles. Owners need to be ready to accept a lower price for the wood they sell to allow contractors to avoid the use of large machinery.
• Access to woodlands is getting more difficult, as the individual woodlands get smaller and the machinery gets bigger.
• Squirrels are having a serious destructive impact on plantations of native trees, and deer can also have an impact. Control methods must be included in a management plan.


Gillian Alker and Jane Hull, from the Forestry Commission, discussed the different grants that are available for producers and users of biomass fuel:

• Woodfuel users can access the Bioenergy Capital Grant scheme, where a new round is expected to open later this year, the Low Carbon Buildings Programme, the Big Lottery Fund and various funds from utility companies.
• Finance for local authorities is available from Salix Finance, and for businesses from the Carbon Trust and though Enhanced Capital Allowances from HMRC.
• On the supplier side, there is the English Woodland Grant Scheme, the Energy Crops Scheme, the Bioenergy Infrastructure Scheme and the Rural Development Programme for England. (some of these are currently closed, but new rounds are expected to open soon).

Julian Morgan-Jones, of South East Wood Fuels Ltd, explained some of the critical considerations for supplying fuel to end users. The key points were:

• Woodfuel is still a new, immature market, and customers don't always know what they want.
• There is still a lack of infrastructure - biomass boilers do require more attention than a gas or oil boiler.
• The design of the fuel store is often the most critical issue, as a badly deisgned store makes delivery difficult, and therefore expensive for the end user.
• The areas for the industry to work on are: confidence, fuel store design, delivery vehicles, fuel quality, advance ordering of fuel, and managing expectations.


Well, that sums up the workshop, but there was also a lot of other wood-related stuff at the fair, such as mobile sawmills:
chainsaw sculpture:
arrays of machinery:
traditional crafts:
and crowds of people:
For more information on organisations producing and using woodfuel, visit the Ashden Awards website.

Mike Pepler
Technical Manager
Ashden Awards

Click here to read the rest of this post.

Blog Action Day 2009

We've signed up, have you? This year, Blog Action Day is on Climate Change:

Click here to read the rest of this post.

IDE-India features on PBS

IDE India, who won Ashden Awards in 2006 and 2009, have now featured on the News Hour on PBS, you can watch the video here:

Click here to read the rest of this post.

Oil still has us over a barrel

Jeremy Leggett, CEO of SolarCentury, one of the 2008 Ashden Awards winners, speaks out in his regular column for The Guardian about his concerns over peak oil and puts the latest oil finds in the Gulf of Mexico and other areas of the world into perspective. Based on an oilfield-by-oilfield study by the International Energy Agency (IEA), he argues that oil supplies are still depleting at an alarming rate, at a time when demand is also increasing, particularly in countries like India and China: “the IEA sees the potential for a global oil-supply crunch within just five years”.

Read the full story here.

Click here to read the rest of this post.

Eco-schools story on Ashden Awards winners

There's a short story over on the Eco Schools website about the 2009 Ashden Awards schools winners, Ashley and Currie. You can read it here.

Click here to read the rest of this post.

10:10 - cut your carbon by 10% in 2010

10:10 is an initiative to encourage people and organisations to cut their carbon emissions by 10% during 2010. From their website:

It’s easy to feel powerless in the face of a huge problem like climate change, but by uniting everyone around immediate, effective and achievable action, 10:10 enables us all to make a meaningful difference.

The plan is simple: we work together to cut our carbon emissions by 10% in 2010. 10:10 is an idea whose time has come.

Their website has advice on how to make the 10% cut, customised for individuals, schools, businesses and other organisations. Check it out on their website:
10:10

and also look at the coverage in the Guardian

Click here to read the rest of this post.

Low Carbon Leadership

Marches Energy Agency (MEA), a 2009 Ashden Award winner, has produced an excellent workbook for decision makers on how to achieve a low carbon footprint.

The workbook aims to inspire action, as MEA Director Richard Davies says "it seeks to help all that use it to get from aspiration to planning practical action". It is packed full of practical advice on how to calculate your carbon footprint, create a vision and make it happen. The pack is produced by the MEA in partnership with the Energy Saving Trust.

Download the workbook and accompanying worksheet from the MEA Carbon Forum website.

Read more about MEA on the Ashden Awards website

Click here to read the rest of this post.

IDE India features on Voice of America

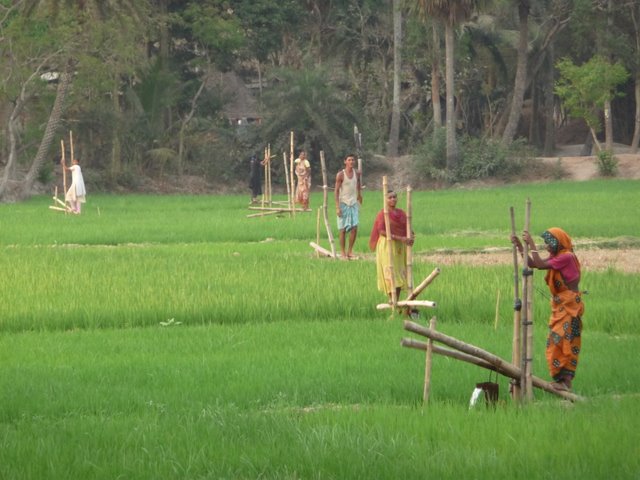

A simple water pump is helping to improve the lives of poor families in several Asian and African countries.

The treadle pump is based on a design developed in the nineteen seventies by Norwegian engineer Gunnar Barnes. It can be made locally. A group based in the United States, IDE, International Development Enterprises, has created programs in different countries.

The program in India won an Ashden Award in two thousand six for using local sources of energy to improve quality of life. Last year the Bill and Melinda Gates Foundation awarded IDE twenty-seven million dollars. The money is to be used to expand small irrigation projects to the other half of India's twenty-eight states.

Read the full story here and also visit their page on the Ashden Awards website.

Click here to read the rest of this post.
